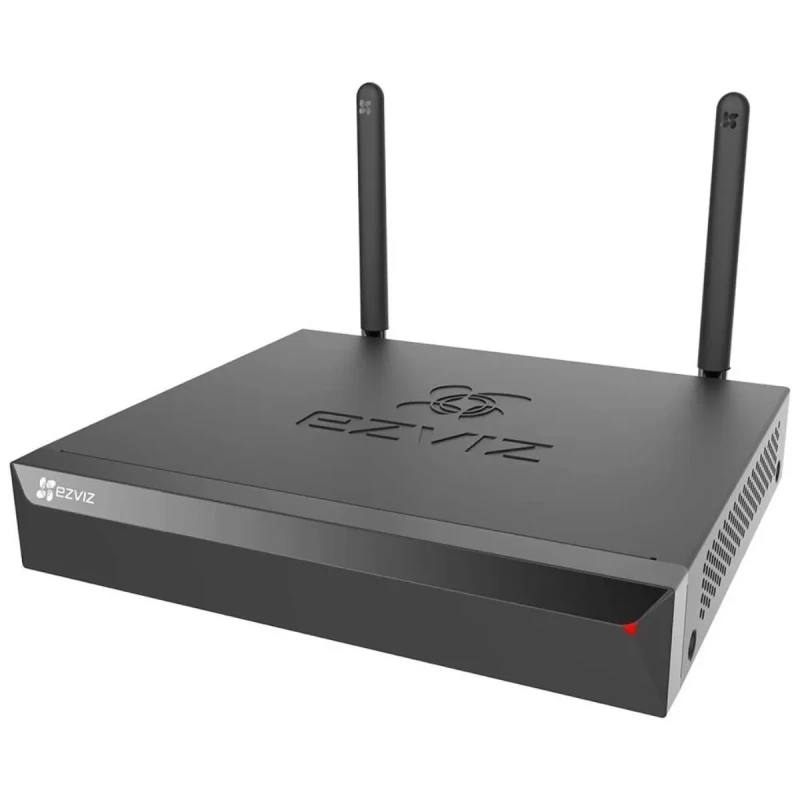

Ezviz X5S Wireless NVR, 8 Wi-Fi Camera Support, 3K Recording, HDMI & VGA Outputs, H.265 Efficient Storage
47.25 JOD
Earn 473 points
About Product
The X5S Wireless NVR is a high-capacity storage solution designed for multi-camera security systems. It supports up to 8 Wi-Fi cameras, records in up to 3K resolution, and outputs via HDMI and VGA. The device uses H.265 video compression to efficiently store large files, reducing storage space and bandwidth requirements by up to 50%. It can accommodate up to 8TB of HDD storage (sold separately) and ensures smooth, reliable recording and playback of important footage. Ideal for 24/7 monitoring with multi-camera management.Read full description
Description
| Specifications | |
|---|---|
| Model | CS-X5S-R100-4W, CS-X5S-R100-8W |
| IPC Access Capability | |
| Wireless/Wired IPC Access Capability | 3K *4/3K *8 |
| Wired IPC Access Capability | 3K *4 (X5S-4W) / 3K *8 (X5S-8W) |
| Network Parameters | |
| Antenna Number | 2 |
| Max Wireless Range | 100m |
| Radio Frequency | 2.4G |
| Ethernet Port | One 10/100M adaptable Ethernet interface |
| Required Access Bandwidth | 50 Mbps/100 Mbps |
| Video Output | |

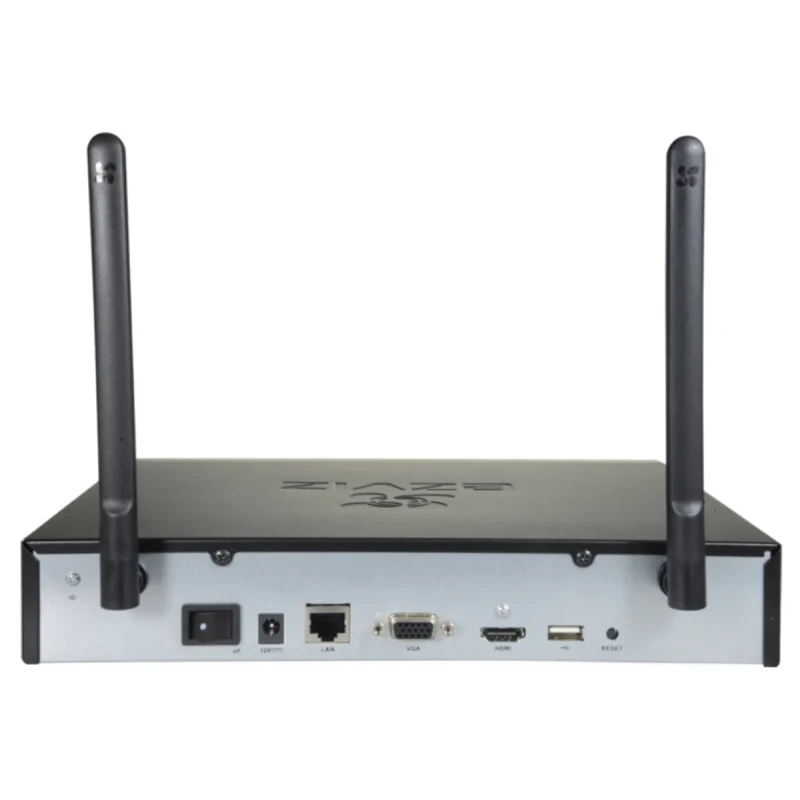

| VGA | 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz |
| HDMI | 1 channel resolution up to 2592*1944/30HZ |
| Audio/Video Codec | |
| Recording Resolution | 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
| Video Encoding | H.265, H.264 |
| Decode Playback | Supports 4*3K/Supports 8*3K |
| Video Recording Management | |
| Video Recording Mode | Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording |
| Backup Mode | Hard disk backup, Internet application backup |
| Playback Mode | Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback |
| Open Protocol | |
| Open Protocol Support | HIKVISION, ONVIF (V.2.5) |
| HDD | |
| Interface Type | One built-in SATA port |
| Capability | Supports 1TB to 8TB 3.5-inch HDD |
| External Interface | |
| Audio Input/ Output | Not support |
| Hardware Reset | Supports |
| USB2.0 Interface | 2 |
| Dimensions | |
| Product Dimensions | 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch) |
| Packaging Dimensions | 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch) |
| Power Supply | |
| DC | 12V/1.5A |
| Consumption | |
| Standby status | ≤8W |
| Weight | |
| Net Weight | 932 g |
Product Code: CS-X5S-R100-8W
