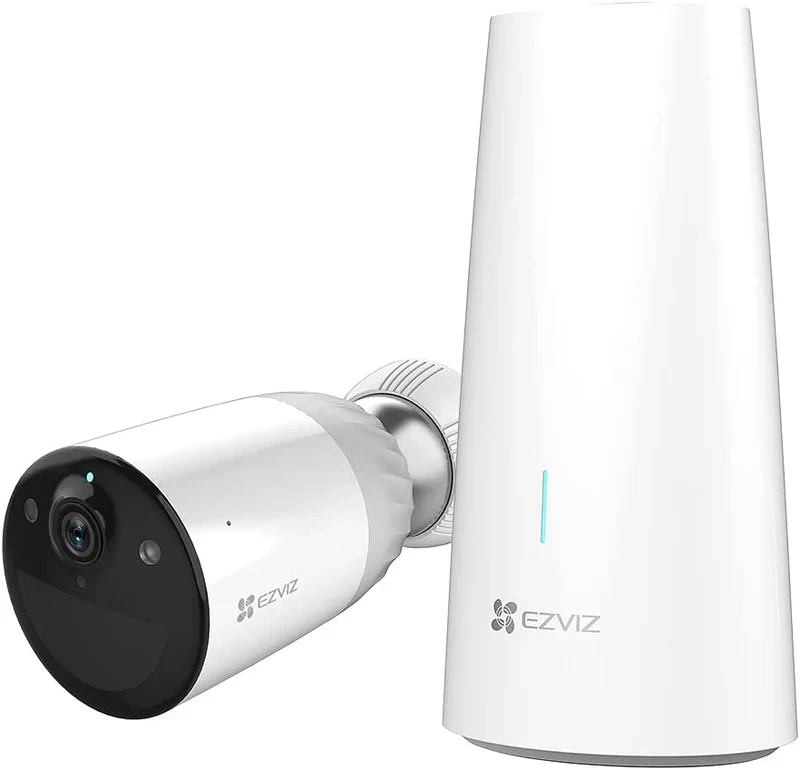

EZVIZ BC1-B1 Battery-Powered Wireless Camera, Smart Home Security with Color Night Vision, PIR Detection, and Weatherproof Design
Weight: 1,304g
About Product

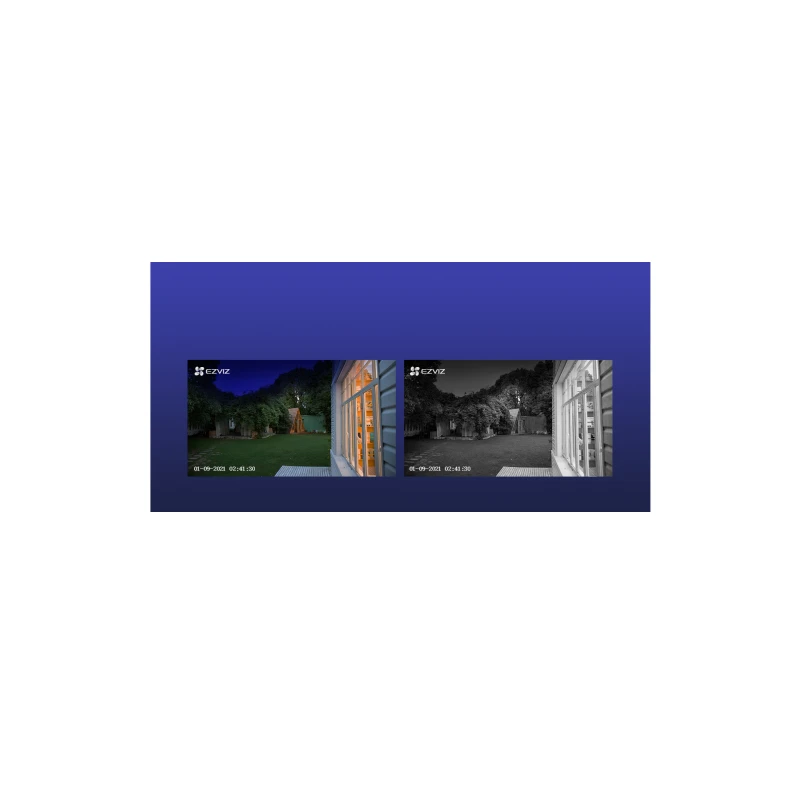

The BC1 wireless camera, used with a base station, provides comprehensive home protection for up to a year on a single charge. The BC1 incorporates EZVIZ's core technologies, including color night vision, two-way audio, active defense, and more, offering unique usability in any home.
By integrating a PIR sensor and a person-shape detection algorithm, the BC1 is intelligent enough to distinguish people from other moving objects, keeping you safe while minimizing unwanted alerts.
A durable design.
The BC1 features an IP66-rated enclosure, providing high levels of dust and water resistance and ensuring long-lasting protection even in the harshest weather conditions.
The base station, equipped with a 256GB microSD card slot, allows you to store videos recorded by the BC1 internally. This design ensures data protection in case the camera is damaged or lost. You can also save videos to EZVIZ CloudPlay for added peace of mind.
Read full description
Description
Specifications | |
|---|---|
| Model | CS-BC1-B1 |
| System Parameters | |
| Processor | High-Performance Embedded SOC Processor |
| Operating System | Linux |
| Camera Parameters | |
| Image sensor | 1/2.8” 2-Megapixel Progressive Scan CMOS Sensor |
| Lens | 2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal) |
| Lens Mount | M12 |
| Night Vision | IR Distance:10m, IR-cut filter with auto-switching |
| Video Parameters | |
| Video Compression | H.265 |
| Max. Resolution | FHD 1920 x 1080 |
| Frame Rate | 15fps. Self-Adaptive during network transmission |
| DNR | 3D DNR |
| WDR | DWDR |
| Audio Parameters | |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression |
| Camera Event | |
| Sensor | PIR Motion Detection Sensor |
| Alarm | Customized Alert Area |
| Siren | 105 dB built-in siren |
| Camera Network Parameters and Storage | |
| Wireless | Built-in 2.4G Wi-Fi |
| Network Configuration | AP Pairing |
| Minimum Network Requirement | 1Mbp |
| Local Storage | Support MicroSD card up to 256 GB in Base Station |
| Cloud Storage | EZVIZ Cloud Storage |
| Base Station Parameters | |
| Camera pairing | Support up to 4 BC1 cameras |
| Buttons | 1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET) |
| Siren | 125 dB built-in siren |
| Local Storage | MicroSD card slot on the base station (up to 256 GB) |
| Antenna | 2.4G: 2 internal @ 3dB |
| Indicator | RGB 3 LED Indicator; 1 network Indicator |
| USB | Do not support |
| Network Interface | 1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface. |
| Wireless Interface | Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n. |
| Power | 12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V |
| General | |
| Operating Conditions | -20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12900mAh Rechargeable Lithium Battery or 5V DC |
| Power Consumption | Max. 5W |
| IP Grade | IP 66 |
| Dimensions | Camera: 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch) |
| Base: 81.97 x 63.97 x 160.22 mm (3.23 x 2.52 x 6.31 inch) | |
| Packaging Dimensions | 260.00 x 217.00 x 180.00 mm (10.24 x 8.54 x 7.09 inch) |
| Weight | 1304 g (46 oz) |
Product Code: CS-BC1-B1(2MP)
