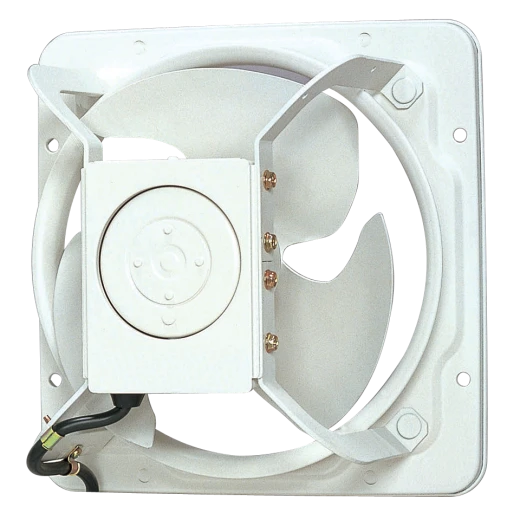

KDK 30GSC INDUSTRIAL VENTILATING FAN (HIGH PRESSURE) 30CM
Dumyah Super
Get a 30-day trial of Super for 0.00 JOD
Super Members earn 4300 points (instead of 2150)About Product
High pressure series
Blade size = 300mm
Single phase
Reversible
High performance motor
Air volume = 1,800m³/h
Distinctive wave shape blade delivers a smooth and turbulence-free Airflow
Bell mouth construction incorporated with new blade enables operation with high static pressure
Durable powder coating ensure high rust-resistant capability
Unique drain mechanism avoids the ingress of water and dust into the motor for excellent durability
High performance totally enclosed motor with thermal cut-off
Able to be used over an ambient temperature range of from -10 to +50℃
Possible to install horizontally or vertically
Optional guard and shutter available
Read full description
Description
High pressure series
Blade size = 300mm
Single phase
Reversible
High performance motor
Air volume = 1,800m³/h
Distinctive wave shape blade delivers a smooth and turbulence-free Airflow
Bell mouth construction incorporated with new blade enables operation with high static pressure
Durable powder coating ensure high rust-resistant capability
Unique drain mechanism avoids the ingress of water and dust into the motor for excellent durability
High performance totally enclosed motor with thermal cut-off
Able to be used over an ambient temperature range of from -10 to +50℃
Possible to install horizontally or vertically
Optional guard and shutter available
Product Code: 30GSC
Technical Details
| General Specifications | |
| Product Type | INDUSTRIAL VENTILATING FAN |
| Power Source | Single phase |
| Performance | |
| Airflow (CFM) | 1,800m³/h |
| Dimensions & Installation | |
| Height | 300mm |
